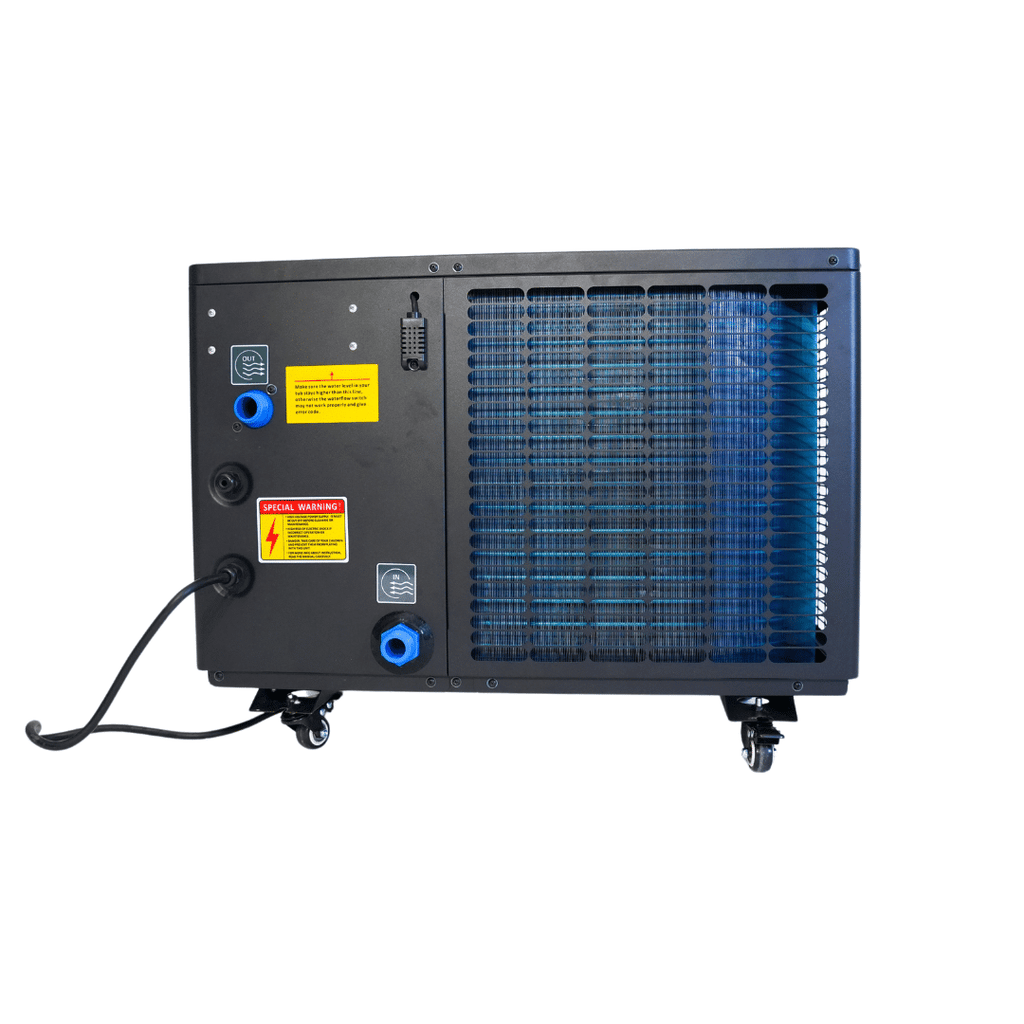

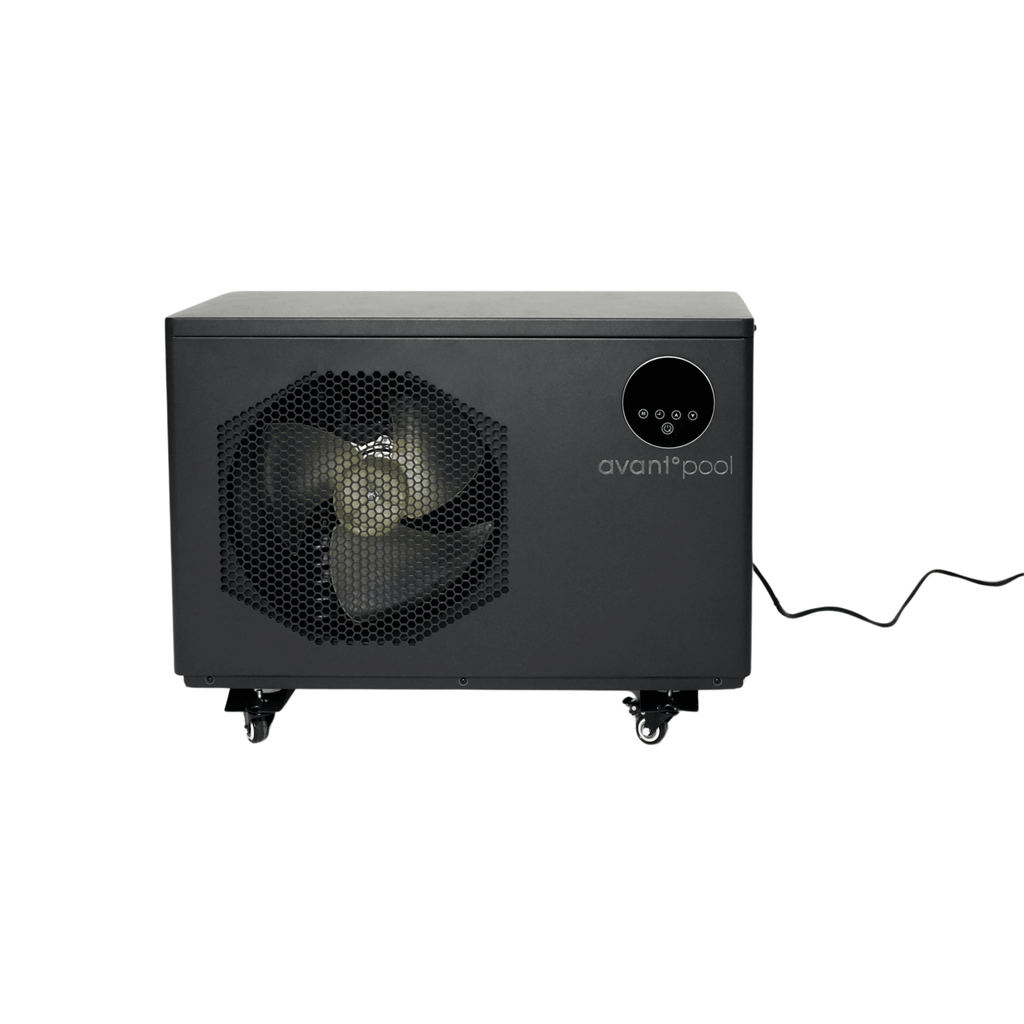

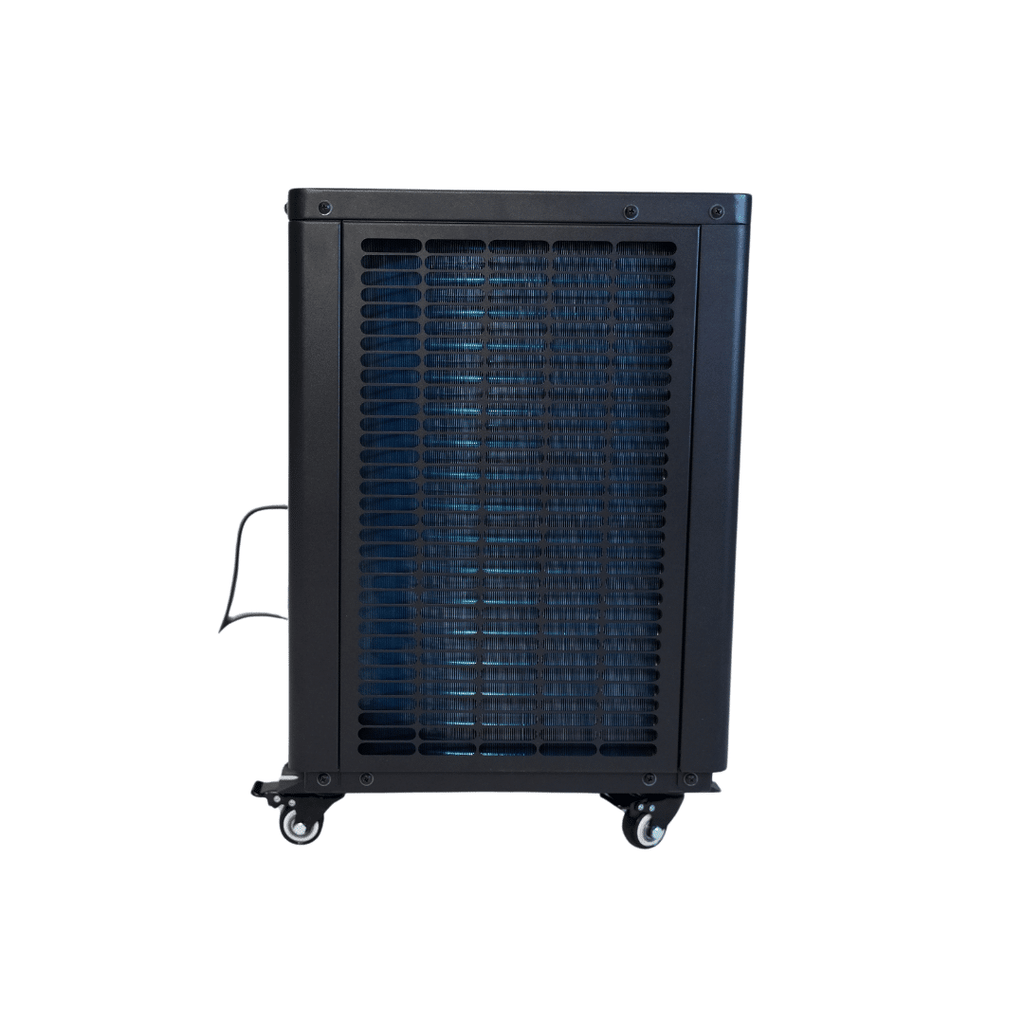

Cooling & Heating Unit (with hoses & connectors)

The external Cooling & Heating unit is easy-to-use with the Hanki pool and Kide pool. It can be connected to other water tanks up to 700 liters as well. The hosing is equipped with 1” quick connectors. From the unit control panel the target water temperature can be adjusted between +4°C and +40°C. The control panel displays the actual water temperature as well as the set target temperature.

Specifications

Dimensions
Length 74 cm, width 37 cm, height without wheels 49 cm / with wheels 54 cm

Weight
42 kg

Temperature Range
+4°C – +40°C

Color
Black

Water Filtration (optional)
External filter cartridge

Hygiene
Continuous UV purification

Cooling and Heating Capacity
2.3 kW (8°C per hour)

Outdoor Use Temperature
–7°C – +43°C

Refrigerant
R32

Digital Control Unit
Water temperature, target water temperature, clock, on/off timer

Required Power Supply
220–240 V / 50 Hz, single-phase, equipped with a residual current device (RCD) in the supply cord 2.50 m, 6 A

Noise Level
51 dB (A)

Water Resistance
IPX4

Water Connection
1″ quick connectors

Warranty
2 years private use, 1 year commercial use

Certification
CE certified
